Introduction to the Component

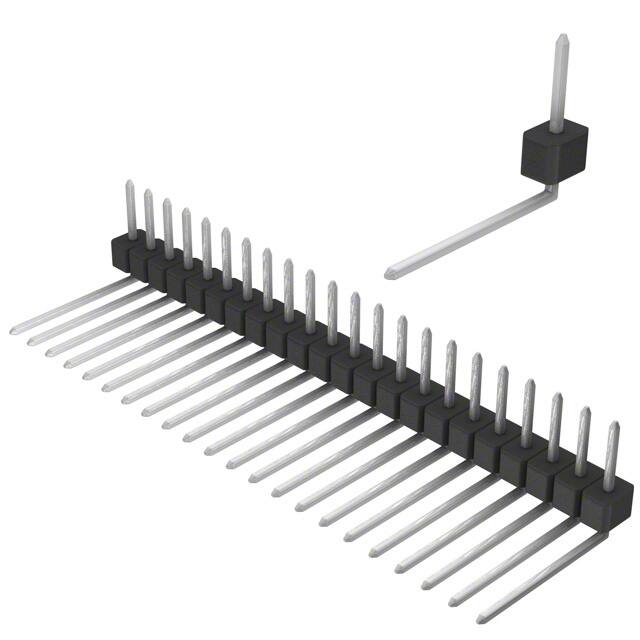

The CONN HEADER R/A 22POS 2.54MM (Sullins Connector Solutions, SKU: PEC22SBEN) is a rugged, right-angle pin header with 22 positions on a standard 0.1-inch (2.54 mm) pitch. This component is ideal for a hands-on design tutorial because it provides a reliable, solderable interface for prototyping and production systems. Its right-angle orientation is perfect for space-constrained designs, such as expansion cards or modules that need to connect perpendicular to a main board. The 22-pin count is versatile for parallel data buses, GPIO arrays, or mixed-signal lines, making it a practical choice for learning about connector selection, footprint design, and signal routing.
Design Requirements and Specifications
For this tutorial, we will design a simple 8-bit parallel input/output (I/O) expansion module that interfaces with a microcontroller via the PEC22SBEN header. The circuit will read eight digital inputs (e.g., from switches) and output eight LED indicators. Key requirements include: 3.3 V logic levels, 10 mA LED drive current, 50 mA total input current, and operation at 25°C ambient. Signal integrity must ensure that rise times under 10 ns are maintained across the connector. The PEC22SBEN’s rating of 3 A per pin (at 250 V) is more than sufficient, and its 0.025-inch square pins provide low contact resistance (<20 mΩ).
Step-by-Step Design Process with Calculations
First, assign pin functions: pins 1–8 for inputs, pins 9–16 for outputs, pin 17 for VCC (3.3 V), pin 18 for GND, and pins 19–22 as spare. For input protection, add a 10 kΩ pull-up resistor to each input pin (R1–R8). For outputs, each LED requires a current-limiting resistor. With a 3.3 V supply and forward voltage of 2.0 V for a standard red LED, calculate: R = (3.3 V – 2.0 V) / 10 mA = 130 Ω. Use 150 Ω (standard value) for 8.7 mA, which is safe. Total output current: 8 × 8.7 mA = 69.6 mA. Add 10% margin for input pull-ups: 8 × (3.3 V / 10 kΩ) = 2.64 mA. Total current per VCC pin: 72.24 mA, well under the 3 A limit. The GND pin must handle the return current, which is identical.
Component Selection Rationale for the Complete BOM
The PEC22SBEN header is chosen for its right-angle form factor and 22 pins. For the input pull-ups, select 10 kΩ ±5% 0805 resistors (e.g., Vishay CRCW080510K0JNEA) for their small size and low cost. Output resistors: 150 Ω ±5% 0805 (e.g., Yageo RC0805JR-07150RL). LEDs: Kingbright KP-2012SRC-PRV surface-mount red LEDs with 2.0 V forward voltage and 10 mA rating. A 100 nF decoupling capacitor (e.g., Murata GRM21BR61E105KA12L) at the VCC pin of the header filters noise. For microcontroller connection, use a ribbon cable with a 22-pin IDC socket (e.g., ASSMANN WSW AWHW22G-0202) that mates with the header. All components are standard, readily available, and rated for 3.3 V operation.
Simulation Tips and What to Look For
In a SPICE simulation (e.g., LTspice or Multisim), model the header as a series inductance of 10 nH per pin and a resistance of 20 mΩ. Connect a 3.3 V pulse source with 5 ns rise time to an input pin through a 10 kΩ pull-up. Observe the voltage at the microcontroller’s input pin: ensure the rise time remains under 10 ns. For the output, simulate the LED with a 2.0 V Zener diode in series with a 150 Ω resistor. Check that the current is 8.7 mA ±10%. Add a 100 nF capacitor to the VCC node and look for ripple less than 50 mV during switching transients. Common simulation pitfalls include ignoring pin inductance, which can cause ringing; add a 10 pF load capacitor to model the microcontroller input. Also verify that the total power dissipation in the connector (I²R) is negligible (72 mA² × 0.02 Ω = 0.1 mW).
Prototype Build and Testing Methodology
Fabricate a small PCB (e.g., 50 mm × 30 mm) with the PEC22SBEN header soldered to the edge. Place the resistors and LEDs in a row for easy probing. Use a hot-air station for surface-mount components; for the through-hole header, solder with a fine-tipped iron. After assembly, perform a visual inspection for shorts or cold joints. Power the board with a 3.3 V supply via the VCC and GND pins. Test inputs by connecting a switch to an input pin (with pull-up) and verifying the voltage at the header pin goes from 3.3 V (high) to 0 V (low) when pressed. For outputs, connect an LED circuit and confirm it lights when a 3.3 V signal is applied to the output pin from a function generator. Use an oscilloscope to measure signal integrity: set the generator to a 1 MHz square wave, probe the header pin, and verify that overshoot is less than 10% of the signal (330 mV) and that no ringing persists beyond one cycle.
Performance Verification and Optimization
Verify the performance by measuring the input pull-up current (should be 330 µA per pin) and the LED current (8.7 mA per output) using a multimeter. Check the voltage drop across the header: with 72 mA total, the drop should be less than 1.5 mV (72 mA × 0.02 Ω). If the drop is higher, suspect a poor solder joint. For optimization, consider adding a ferrite bead (e.g., 600 Ω at 100 MHz) in series with the VCC line to suppress high-frequency noise from the cable. If the rise time is too slow, reduce the pull-up resistor value to 4.7 kΩ, but recalculate the input current (now 702 µA per pin). Lastly, test the entire system with a microcontroller: write a simple program to toggle outputs based on inputs, and confirm that the PEC22SBEN header provides reliable, low-inductance connectivity. This design demonstrates how a standard connector can serve as a robust interface for mixed-signal prototyping.
